Fittings
Steel
Fittings

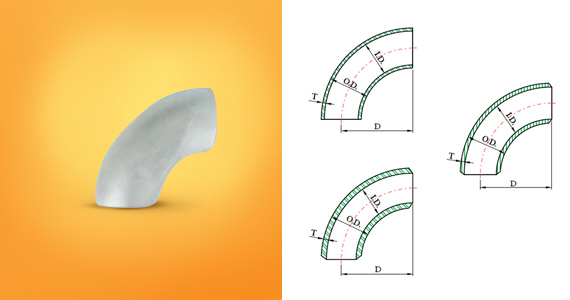

90° Long Radius Elbows

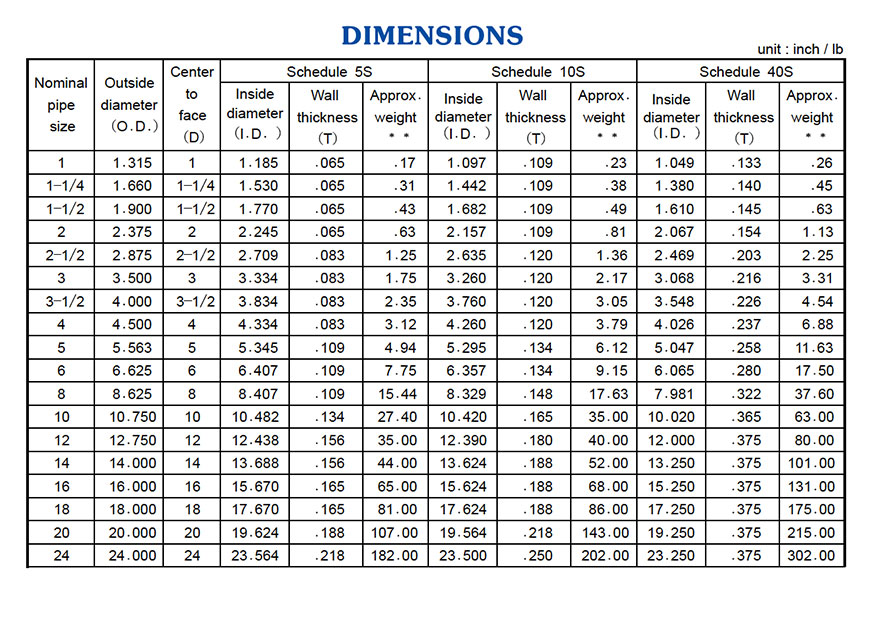

View Dimensions
90° Long Radius Elbows
View Dimensions

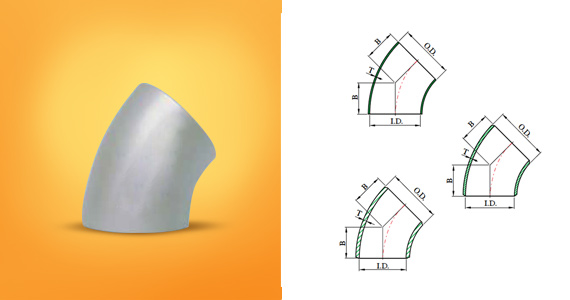

45° Long Radius Elbows
View Dimensions
Caps
View Dimensions
Straight Tees
View Dimensions
Welded Fittings Manual SR
Sanitary Fittings and Pipe Fittings

  • 1. Standards: BS 4825
  • 2. Applications: For the Food, Beverage, and other Hygiene Industry
  • 3. Working Pressures: 10 Bar (Max. operating)
  • 4. Materials: Round slotted Nut---------------TP-304
  • Hex. Nut--------------------------TP-304
  • Expanding Male part-----------TP-304, 316, 316L
  • Welding Liner-------------------TP-304, 316, 316L
  • Welding Male part-------------TP-304, 316, 316L
  • Blank Round Nut--------------TP-304, 316, 316L
  • Blank Liner--------------------TP-304, 316, 316L
  • Seal----EPDM, Silicone
  • 5. Surface Finished: Ra Max 0.8um.
  • 6. Size range: 1"-----8"

See Manual Sanitary Fittings and Pipe Fittings

See Handrail Fittings
