IP Phone System - U60


Category

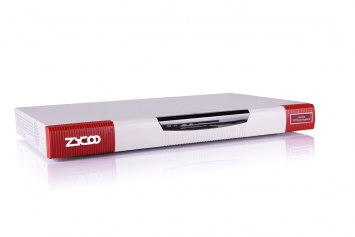

CooVox-U60 IP Phone System is specially designed for medium and large companies that need to maintain several PSTN lines or that have many analog phones in use. This new solution closely resembles the U100, except it supports up to 24 analog ports, which is ideal for business with up to 200 extensions, or that requires up to 80 concurrent calls.

Companies can maintain whatever PSTN lines they require while being able to take advantages of advanced IP PBX features all the same, including Automated Attendant, Voicemail, Remote Extensions, Remote Office Connection, Conference Bridging, Call Recording, Call Detail Records (CDR), Automatic Call Distribution (ACD), Unified Messaging (Voicemail to Email), and more.


Features

Call Features
Call Back
Call Forward
Call Group
Call Hold
Call Paging and Intercom
Call Park
Call Pickup
Call Queue
Call Recording
Call Routing
Blind Transfer
Attended Transfer
Call Waiting
Caller ID
Dial by Name
Music On Hold/Transfer
3-Way Conference
Video Call

PBX Features
Black List
BLF (Busy Lamp Field)
CDR (Call Detailed Record)
Conference Room (3 Rooms)
Call Monitoring
DID (Direct Inward Dialing Number)
DISA (Direct Inward System Access)
Distinctive Ringtone
DND (Do Not Disturb)
DNIS (Dialed Number Identification Service)
Feature Codes
Follow Me
IVR (Interactive Voice Responses)
Mobility Extension
Multi-Language Prompts
Multi-Language GUI
One Touch Recording
Phone Book
Phone Provisioning
Pin Set
Record File Download
Ringgroup
SIP Register with UDP/TCP/TLS
SIP Trunk
Skype for SIP
Smart DID
Speed Dial
Spy
SRTP (Secure Realtime Transport Protocol)
T.38 Fax (Pass-through)
Time Based Rule
Virtual Fax
Voicemail & Voicemail to Email

System Capacities
80 Concurrent Calls
Up to 200 IP Phone Registers/Extensions
Recording: 200,000 mins (.gsm); 20,000 mins (.wav)
Voicemail: 200,000 mins (.gsm); 20,000 mins (.wav)

Codecs & Protocols
Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/
G.726/G.729/GSM/SPEEX
Video Codecs: H.261/H.263/H.263+/H.264
Protocols: SIP (RFC3261)/IAX2
DTMF: RFC2833/SIP INFO/In-Band

Network Features
DDNS Client
DHCP Server
IPv4/IPv6/IEEE802.1Q
IP Assignment (PPPoE/DHCP/Static)
SNMP v1/v2
TR069
Static Route Table
Trouble Shooting (Ping/Traceroute)
VPN Client (N2N/L2TP/PPTP/OpenVPN)
VPN Server (PPTP/L2TP/OpenVPN, Up to 10 Users)

Security Features
Refuse SIP Register DoS
Refuse Abort Invite DoS
Refuse SSH Login DoS
Firewall

Logs
PBX Log
Web Access Log
PBX Debug Log

Specification

Hardware Interfaces
1 Power Interface
1 Power Switch
2 Ethernet Interfaces (10/100/1000Mbps)
1 VGA Interface
2 Audio Interfaces
2 USB Interfaces
1 onboard Interface for Optional Hardware Echo Cancellation Module
1 onboard Interface for Optional UMTS Module
24 Analog Ports (FXO/FXS)

Hardware Specifications
CPU: DualCore 1.86 GHz ATOM
SDRAM: DDR3 1GB
Storage: 32GB SSD
Power Supply: AC 100~240V, 50/60Hz, 1.5A max.

Environment
Working Temperature: 0 ~ 40°C
Storage Temperature: -20 ~ 55°C
Humidity: 5 ~ 95% Non-condensing

*PSTN is not perferctly supported temporarily in UK

Applicable Modules

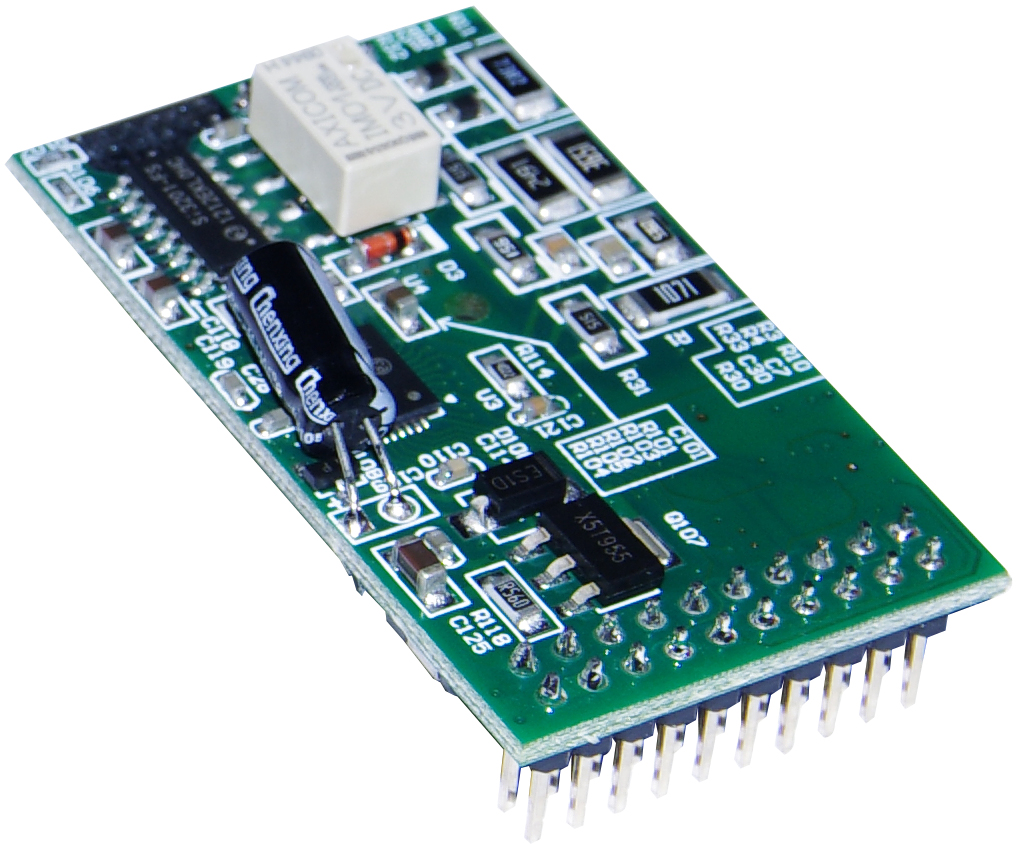

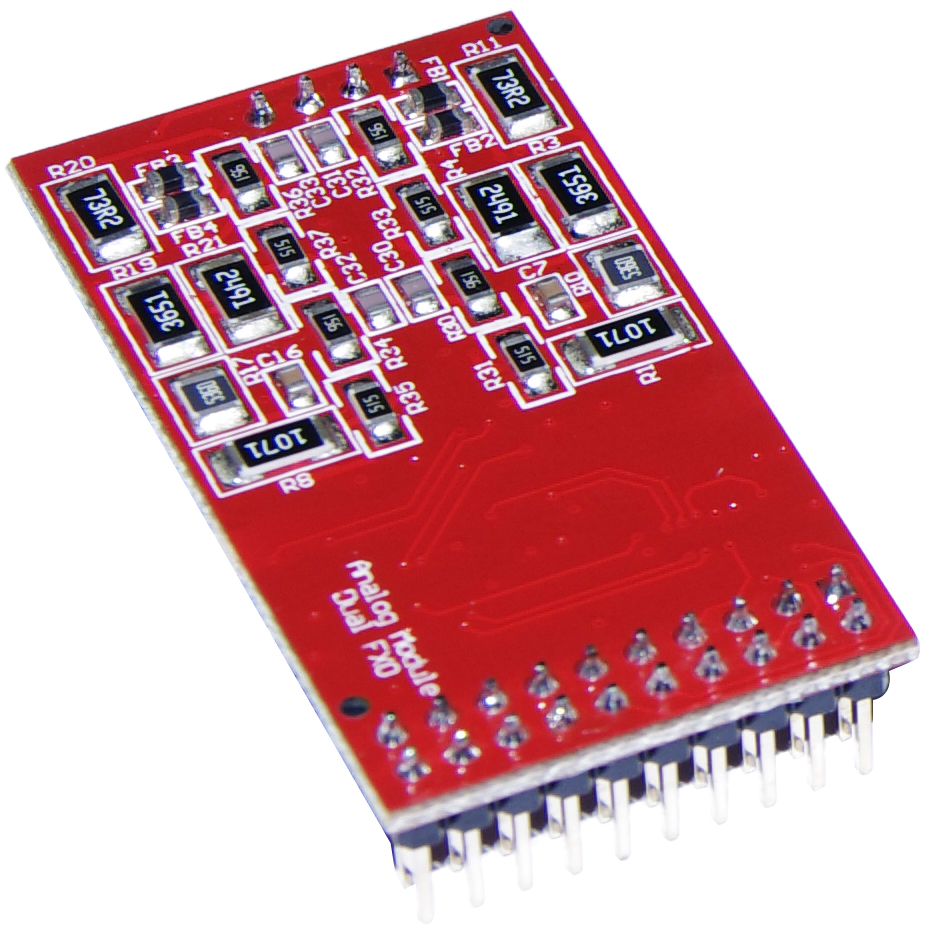

       FXO-200 (2FXO)          FXS-200 (2FXS)     FXOS (1FXO+1FXS)



Packing

Box Dimension 500 × 310 × 90 mm
G.W. / Unit 4.2 KG



Download

Name Version Size Release date Download
CooVox-U60 Datasheet V1.0 1.02 MB Jun. 6, 2014
CooVox Series User Manual (Admin) V1.0.5 2.94 MB May 20, 2014
CooVox Series User Manual (Ext. User) V1.0.5 634.75 KB Apr. 17, 2014
CooVox-U60 QIG V1.0 806.77 KB Apr. 17, 2014
CooVox Module Setting Guide V1.0 1.16 MB Apr. 17, 2014
